Fluid interfaces using CSS

Update 02-03-2023
This article is archived and replaced by a newer article.

Responsiveness should be a core feature of any website. Screen-sizes are both growing and shrinking. This makes that responsiveness now goes beyond composition and layout. We need to adjust the sizes of text and elements and the surrounding spacing. Most achieve this by adding media-queries. But with various pages, elements, and breakpoints, adding media-queries become unmaintainable.

When refactoring crinkles.dev I wanted to remove the dependency on media-queries. But, I wanted sizing and spacing adjust based on the screen size. I needed fluidity on my website. By utilizing CSS variables and the CSS calc function, I could achieve this. Check out how!

Fluid sizing and spacing

I was using media-queries for spacing values (e.g. padding and margin) and font-sizes. On big screens I want larger font-sizes and spacing compared to mobile. The goal is to improve usability and reduce wasted space. But with media-queries, I had to go over all different breakpoints and determine how I wanted to change the spacing and font-sizes. Introducing, fluid interfaces.

With fluid interfaces, you use linear interpolation to scale attributes when your website increases in size automatically (e.g. between 16px and 20px). To achieve this, we need to determine a ratio (a value between 0 and 1) which we can use to scale values based on the website size.

Fluit ratio

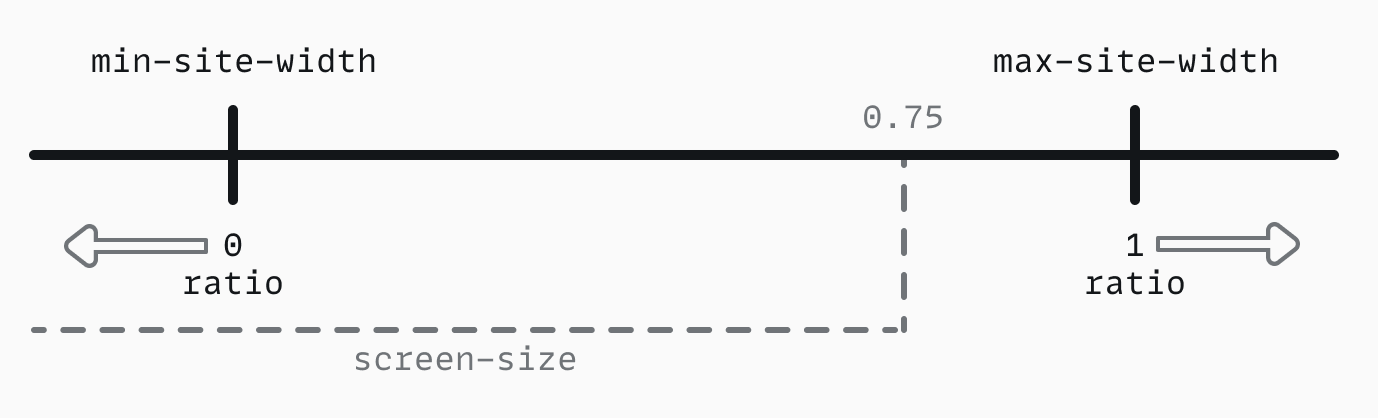

To determine the ratio, you first need to determine the min. and max. width your site has. Some sites take up all the available horizontal space, but many have a max. width. With a min. and max. determined, we can calculate the ratio with the equation below. With this ratio, we can interpolate a size between two values.

         min(100vw, max) - min
ratio = -----------------------
              max - min

With this ratio, we can scale any size (e.g. font-sizes or spacing) based on how big the horizontal size of our website is.

size = min + (max - min) × ratio

Calculating the ratio with calc

rem values correspond to the px font-size set on the html tag. This font-size can be changed by a user by changing his or her browser settings. For accessibility reasons, it is recommended to work as much as possible with rem (or em) values

To implement this concept, you need CSS variables and the calc function. Although it seems easy enough, the implementation comes with some quirks. But first, let's determine our base values. In this implementation all sizes are unitless or in rem values. Based on this value, we can set our initial variables.

/* based on 16px */
:root {
  --unit: 1rem;
  --min: 20;
  --max: 75;
}

With the base values known, we can start calculating the ratio. Here we find the quirks we need to handle. We need to use the min CSS function to calculate the --area value we can determine the ratio with. But, this function always needs values with units for comparison. Thus we multiply our --max with the --unit.

When multiplying using calc, at least one value needs to be unitless. At least the right-hand side of a division needs to be unitless. Adding and subtracting need all values to be unitless, or have (varying) units.

The --area variable is the left-hand side of the described ratio equation. Now we can calculate the --ratio. Because --area already has a unit of rem, --ratio will be a value between 0rem and 1rem.

/* ratio calculation */
:root {
  --screen: calc(min(100vw, var(--max) * 1rem));
  --area: calc(var(--screen) - var(--min) * 1rem);
  --ratio: calc(var(--area) / (var(--max) - var(--min)));
}

With a ratio based on the actual screen size between 0rem and 1rem, we can start scaling elements on our website. For this, we used the described scale equation. Let's look at the example below. This example calculates a build font-size for an article.

/* example for a fluid article font-size */
:root {
  --min-size: 1.125rem;
  --max-size: 1.375rem;
  --text: calc(var(--max-size) - var(--min-size));
  --size: calc(var(--min-size) + var(--text) * var(--ratio));
}

On small screens, the font-size will be 1.125rem and on big screens 1.375rem. With a base font-size of 16px, we can now calculate the exact font-sizes for different screen-sizes. A screen-size of 784px will have an article font-size of 20.109px. But font-sizes is one of many places where we can apply fluidity.

All can have their own set of calculations for fluidity. These can be separate design tokens, or you can scale from the parent element (e.g. using em instead of rem).

Conclusion

When refactoring crinkles.dev I wanted to reduce the number of media-queries, but maintain responsiveness. I wanted to reduce the CSS footprint of the website. But above all, I wanted to make my CSS more maintainable. Adding fluidity for font-sizes, element sizes, and spacing contributed to achieving this goal. Want to see this fluidity in action? Just open this article on your laptop or PC, and slowly resize the browser window.
